Model :
VM7000A

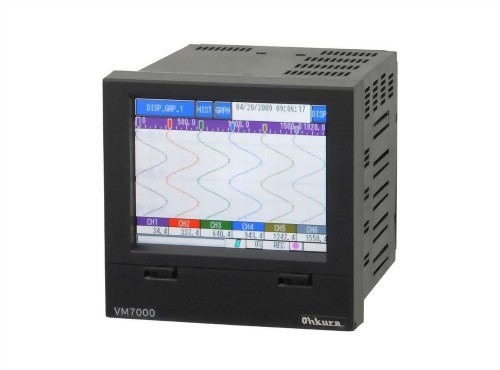

Multitask Paperless Recorder VM7000A
The VM7000A is a paperless recorder that displays real-time measured data on its LCD and stores it on an SD memory card.
Each of its 12 channels can be configured to accept various input types, including thermocouples, resistance temperature detectors, and DC voltage (current).
Data stored on the SD card can be viewed on the recorder’s screen or on a PC using the provided support software.
Data recorded in CSV format can be directly imported into spreadsheet applications like Excel for easy processing, while data in binary format is not readable.
If you have any questions,
please feel free to contact us!
|
Input |
No. of points |
3、6、9、12 points |
|
Measuring cycle |
100ms |
|
|
Input signal |
DC voltage: ±10mV, 0-20mV, 0-50mV, ±200mV, ±1V, ±10V, 0-5V |
|
|
DC current: 4-20mA (External shunt resistance) |
||
|
Thermocouple: K,E,J,T,WRe5-26,N,PLII,U,L,R,S,B,PR40-20,Au-Fe |
||
|
Resistance bulb: Pt100、JPt100 |
||
|
Indication accuracy |
±(0.1%+1digit) of input range |
|
|
Alarm Function |
Number of settings |
Up to 4 alarms for each channel are settable |
|
Output |
Number of points; 1 (open collector) |
|
|
Display |
Backlight life |
50000 hours |
|
Display modes |
Curve graph (horizontal/vertical), digital display, bar graph, historical data, alarm list |
|
|
Recording Function |
Internal memory |
100MB |
|
Data save cycles |
1 hour to 1 year |
|
|
Communication |
Ethernet 10BASE-T |
HTTP server, FTP server, and Modbus/TCP protocol |
|
Option |
RS-485 Modbus Protocol |
|
|
General |
Power supply voltage |
100 ~ 240VAC，50/60 Hz |
|
Power consumption |
15VA max. (at 100V AC), 25VA max. (at 240V AC) |
|
|
External dimension |
(Panel mount) 150(W) ×144(H) ×181.8 (D) mm |
|
|
Relay Card |
Relay: 9 points (1a contacts) |
|
|
DI/DO Card |
DI/DO: input 9 points/output 12 points (open collector) |
- Touchscreen, easy operation
- Standard Ethernet interface
- IP65 protection rating
- Supports SD/SDHC memory cards (maximum capacity 32GB)
- Made in Japan
