Model :
TRP-C37M

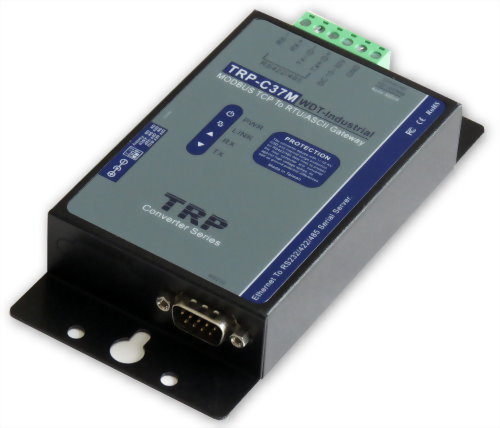

Modbus TCP to RTU/ASCII Gateway TRP-C37M
It is the first step for traditional factories to transition to Industry 4.0.
An Ethernet serial server suitable for industrial environments, featuring a wide power input range and serial communication protection.
This product supports three operating modes: “Direct IP Mode,” “Virtual COM Mode,” and “Paired Mode” for serial servers, all of which support the Modbus RTU/ASCII protocol.
It has built-in overvoltage, overcurrent, and surge protection to ensure the quality of RS422/485 serial communication.
If the user forgets the password, it can also be quickly restored to default settings via an external switch.
If you have any questions,
please feel free to contact us!
|
Input Voltage |
DC +10V~ +30V |
| Network |
Auto-MDIX, 10/100 Mbps Auto-Detection |
|
Modbus TCP Mode |
TCP Master & Slave |
|
Virtual COM Driver Compatibility |
Win 98, Win 2000, Win XP/Vista, Win 2003, |
|
External Button |
Factory Reset Button |
|
Power Input Method |
Wire Lock / DC Adapter |
|
Power Consumption: |
12V/140mA |
|
Operating Temperature |
-10~65 °C |
|
Operating Humidity |
0~90% RH Non-Condensing |
|
Dimensions |
151 x 75 x 26 mm |
|
Weight |
395g (including packaging) |
- Built-in watchdog function to prevent system startup failure.
- Supports automatic MDIX twisted pair crossover detection and auto-correction.
- Modbus type supports TCP master to serial slave and TCP slave to serial master.
- Supports 1 serial master to 8 TCP slaves, each TCP slave can freely set UID from 0 to 256.
- Compatible with Modscan32, Modbus Poll, CAS Modbus Scanner, and SCADA applications.
- Supports virtual COM with a maximum connection of 16 clients. Up to 8 host IPs can be set to restrict network access.
- RS-422/485 data lines have overvoltage protection, overcurrent, and surge protection.
- Supports baud rates from 1200 to 921600Kbps.
- Automatic switching of RS-232/422/485 signal interfaces.
- Fully compatible with Ethernet and TCP/IP protocols.
- Supports 10/100 Mbps Ethernet.
- LED indicators for power/connection/UART receive/UART transmit modes.
- Heartbeat function ensures reliable communication connection.
- Automatically reconnects in case of power or Ethernet failure.
- Restores factory settings via external switch.
- Supports configuration via serial console.
- Firmware updates from LAN.
- Dual power inputs selectable from screw terminals or DC jack.
