Sensor

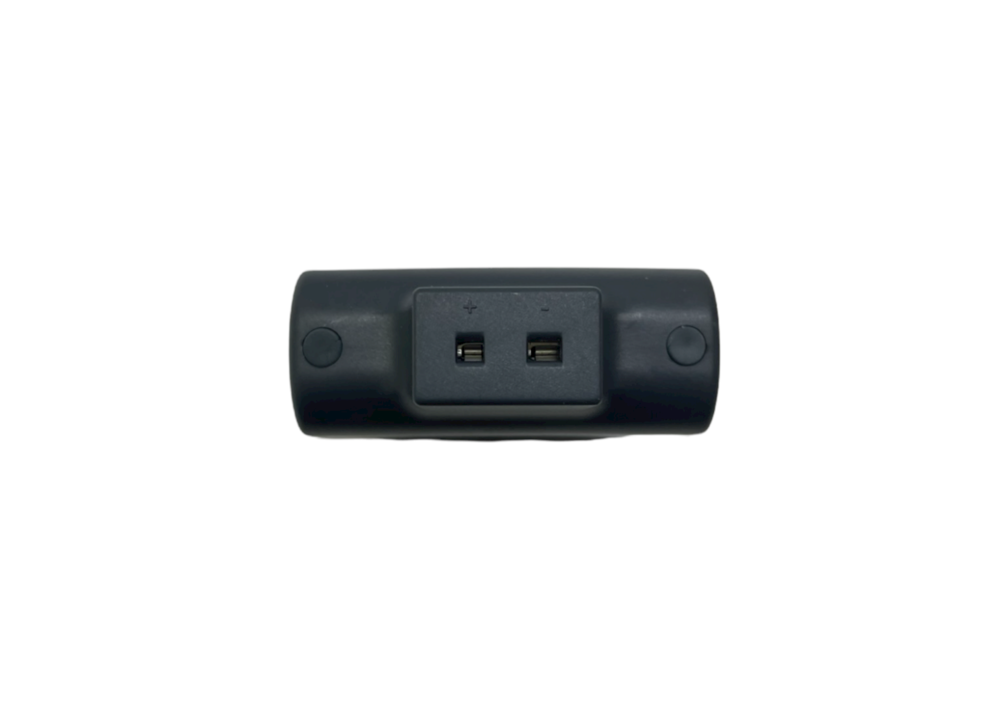

 Extern; Thermoelement Type K, J, T, E

 Weight

 Approx. 90g

 Accuracy

 Accuracy at 25°C
 Type K -100°C ~ +249.9°C ±0.3°C
 Type J -50°C ~ +190°C ±0.3°C
 Type T -50°C ~ +220°C ±0.3°C
 Type E -50°C ~ +150°C ±0.3°C
 Rest of range 0.5% of reading

 Protection Class

 IP40

 Measuring Range

 Type K -200 °C ~ +1200 °C
 Type J -100 °C ~ +800 °C
 Type T -50 °C ~ +300 °C
 Type E -100 °C ~ +600 °C

 Resolution

 Type K 0.1 °C (-99.9 °C ~+250 °C), 1°C for the remaining measurement range
 Type J 0.1 °C (-99.9 °C ~ +190 °C), 1°C for the remaining measurement range
 Type T 0.1 °C (-99.9 °C ~ +220 °C), 1°C for the remaining measurement range
 Type E 0.1 °C (-99.9 °C ~ +150 °C), 1°C for the remaining measurement range

 Certificate

 Factory calibration certificate

 Measured variables

 Temperature

 Intervall

 0.5 ~ 15s

 Storage Temperature

 -25 °C ~ +60 °C

 Dimension

 115 x 54 x 22mm
