Model :
TES-1350A

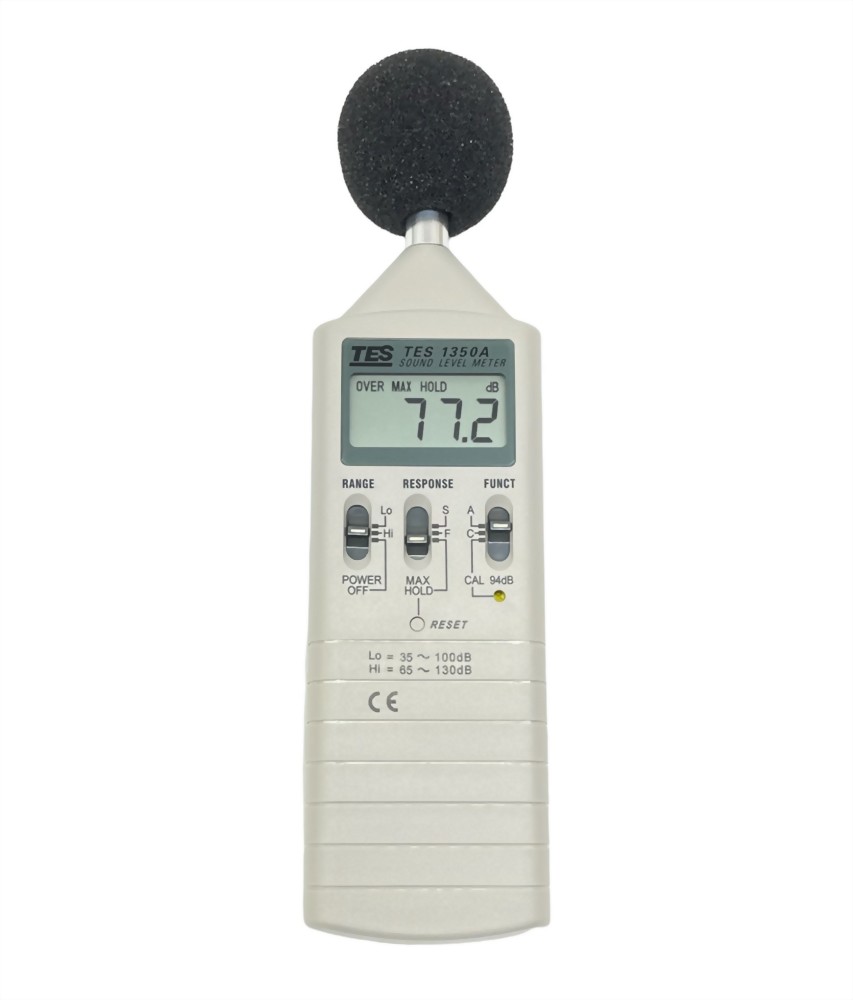

The TES-1350A is a handheld digital sound level meter.
Monitoring environmental noise, testing ultra-quiet products, standardizing product volume, measuring equipment operating noise, and use in hospitals and confinement centers.
If you have any questions,
please feel free to contact us!
|
Display |
4 digital LCD display |
|
Measurement Range |
A LO (Low) : 35 ~ 100dB / A HI (High) : 65 ~ 130dB |
|
Resolution |
0.1 dB |
|
Typical instrument Frequency Range |
31.5Hz ~ 8KHz |
|
Accuracy |
±1.0dB (94dB @ 1KHz) |
|
Dynamic Range |
65dB |
|
Frequency Weighting |
A and C |
|
Time Weighting |
Slow and Fast |
|
Microphone |
1/2 inch Electret condenser microphone |
|
Power Supply |
One 006P 9V or IEC 6F22 or NEDA 1604 Battery |
|
Dimension |
240 x 68 x 25mm |
|
Weight |
約210g |
- Data HOLD function : MAX HOLD, MIN HOLD
- Overload Indication : “OVER”，”UNDER”
- Analog Signal Output : AC/DC Signal，Output from the headphone
- AC Output Range : AC=0.65Vrms(Full Scale)，output impedance Approx. 5KΩ
- DC Output Range : DC=10mV/dB，output impedance Approx. 5KΩ
- Correction Method : Knob correction (Panel button "CAL" control )
