Model :
TES-1330N

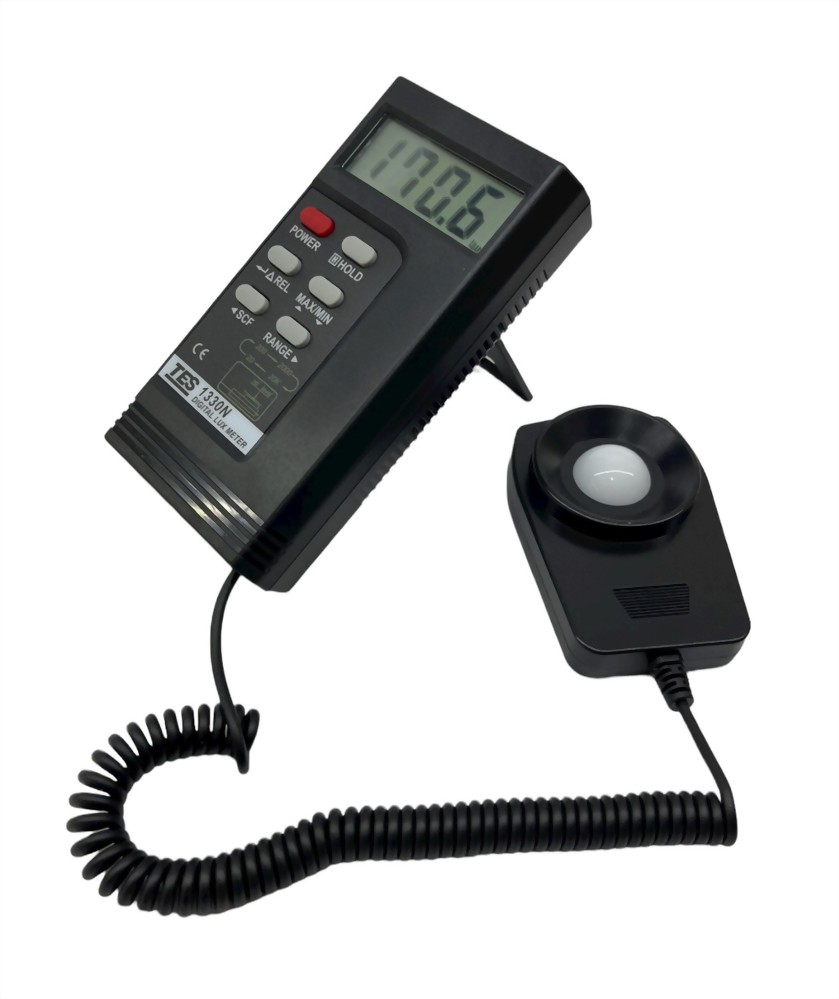

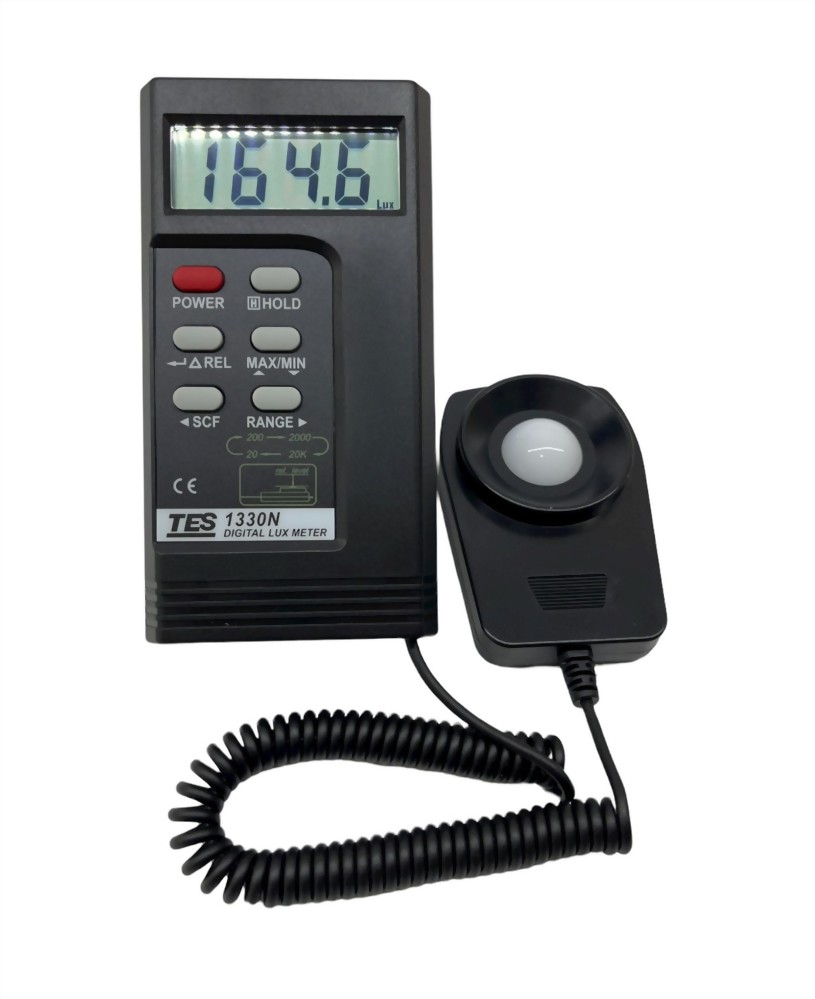

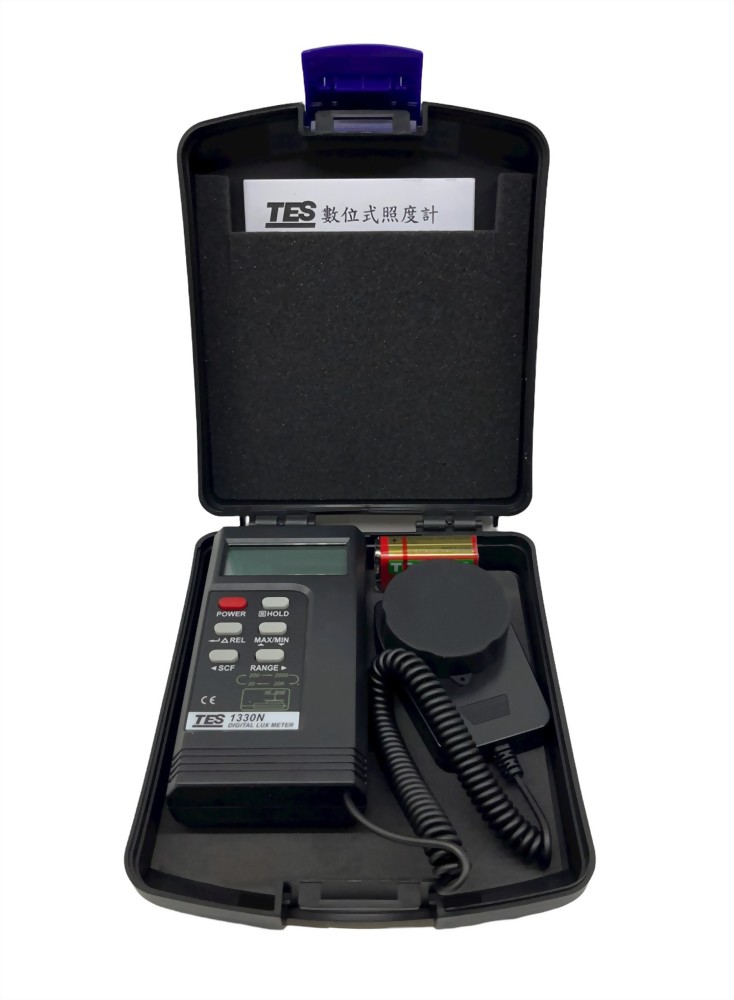

Light Meter TES-1330N
Suitable for various lighting inspection needs.
Designed with user convenience in mind, it features an easy-to-read LCD display and a straightforward interface.
Its portable and durable build makes it perfect for use in outdoor or industrial environments.
If you have any questions,
please feel free to contact us!
|
Display |
3-1/2 digit LCD display |
|
Measuring range |
20/200/2000/20000 Lux |
|
1 Footcandle = 10.76 Lux |
|
|
1 Lux = 0.0929 Footcandle |
|
|
Overrange display |
The highest digit "1" is displayed |
|
Resolution |
0.01 Lux |
|
Accuracy |
±3% rdg±10 dgts (<10,000 Lux) |
|
±4% rdg±10 dgts (>10,000 Lux) |
|
|
(Corrected with a color temperature of 2856K standard flat light) |
|
|
Spectral Response |
Compliant with CIE photopic (Visual Function) standards |
|
Spectral Accuracy |
f ’1 ≦6% |
|
Cosine Response |
f ’2 ≦2% |
|
Repeatability |
±2% |
|
Temperature Characteristics |
±0.1%/℃ |
|
Measuring Rate |
Approx. 2.0 times/second |
|
Photosensor |
The photodiode is equipped with a filter lens. |
|
Operating Temperature |
0℃~40℃(32℉~104℉) |
|
Power Source |
One 9V battery, type 006P or IEC6F22 or NEDA 1604 |
|
Battery Life |
Approx. 500 hours of continuous use (Carbon Zinc battery) |
|
Dimension |
135 × 72 × 33mm |
|
Weight |
250g |
- Measuring Levels Ranging 0.01 Lux to 20,000 Lux
- Accurate and Instant response
- Data "Hold" function
- Spectral Sensitivity close to CIE photopic Curve
- Cosine Angular corrected
