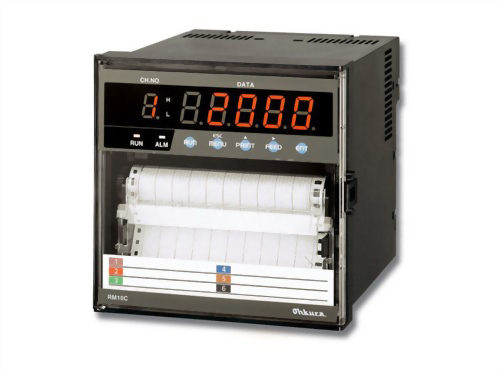

Item

 PEN RECORDER

 MULTIPOINT RECORDER

 Input

 Measuring Point

 1, 2

 6

 Input sampling

 125ms

 10s/6ch

 Type of input

 Direct voltage: ±10mV, 0-20mV, 0-50mV, ±200mV, ±1V, ±10V, 0-5V

 Direct current: 4-20mA (250Ω shunt resistance required)

 Thermocouple: K, T, J, E, B, S, R, C, N, PR40-20, PL Ⅱ, L, Au-Fe, U

 RTD: Pt100, JPt100

 Performance

 Accuracy

 ±(0.2% of rdg + 3digits) max. for Digital indicator

 Noise Reduction

 NMRR: 60dB min. (50/60Hz±0.1Hz)
 CMRR: 140dB min. (50/60Hz±0.1Hz)

 Isolation resistance

 0.5kV DC 20MΩ min. between the each terminal and grounding terminal

 Dielectric strength

 1.5kV AC for 1 minute between power terminal and grounding terminal

 0.5kV AC for 1 minute between input terminal and grounding terminal

 Alarm

 Nos. of Relay Outputs

 3 outputs

 6 outputs

 Alarm Output Contact Capacity

 250V AC 3A max. (resistance load), 30V DC 3A max. (resistance load)

 Communication

 Interface

 RS-232C (Standard)、RS-485 (optional)

 Power Supply

 Rated Power Voltage

 100-240VAC (50/60Hz)

 Power Consumption

 30VA max.(100V AC)

 25VA max.(100V AC)

 Structure

 Mounting/Housing

 Panel mounting / Front panel: Dust-proof, Water-proof (lP-65)

 Dimension

 144 x 144 x 150mm

 Weight

 1.8kg max.

 1.5kg max.

 Operation Condition

 Temperature: 0-50℃, Humidity:20-80%RH

 Recording/ Printing Performance


 Recording/Printing

 Disposable felt pen
 Wire dot 1color ribbon

 Wire dot 6 color ribbon

 95% step response time
 Dot print interval

 1.0s max.

 10.0s/6ch max.

 Chart paper

 Length: 16m,Width: 114mm,Width folded: 40mm

 Chart speed

 User-selective from 41 speeds
 in range: 5-12000mm/hr.

 User-selective from 34 speeds
 in range: 0-1500mm/hr.

 Recording Color

 No.1(Red)、No.2(Green)

 No.1(Purple)、No.2(Red)
 No.3(Green)、No.4(Blue)
 No.5(Brown)、No.6(Black)

 Printing Color

 Purple

 Purple, Red, Green, Blue, Brown, Black
