Model :
PROVA-5601

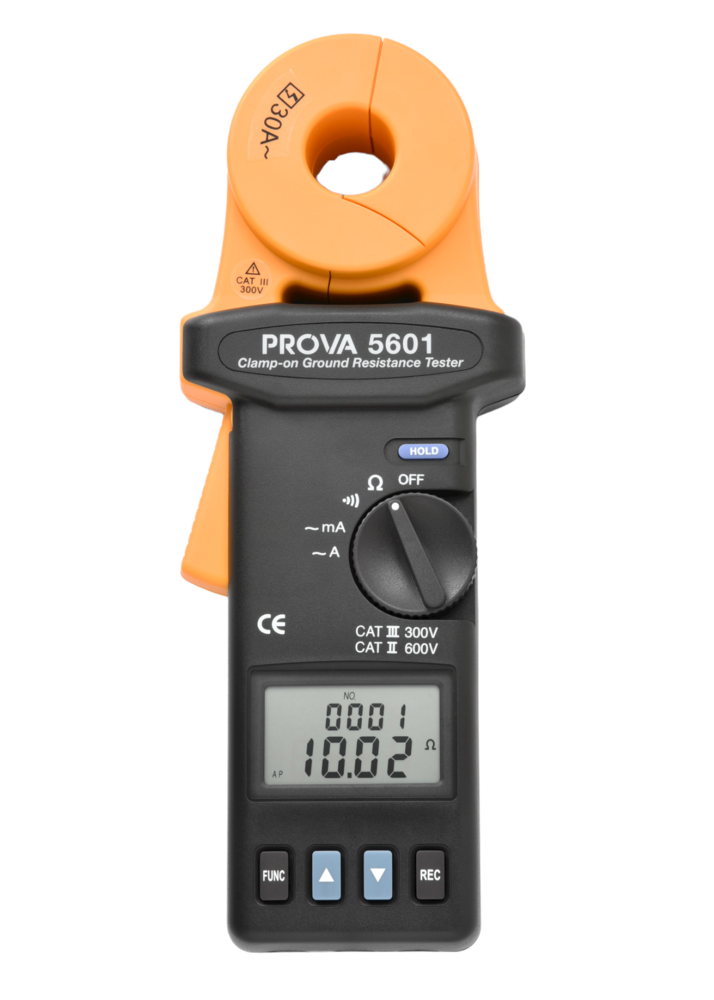

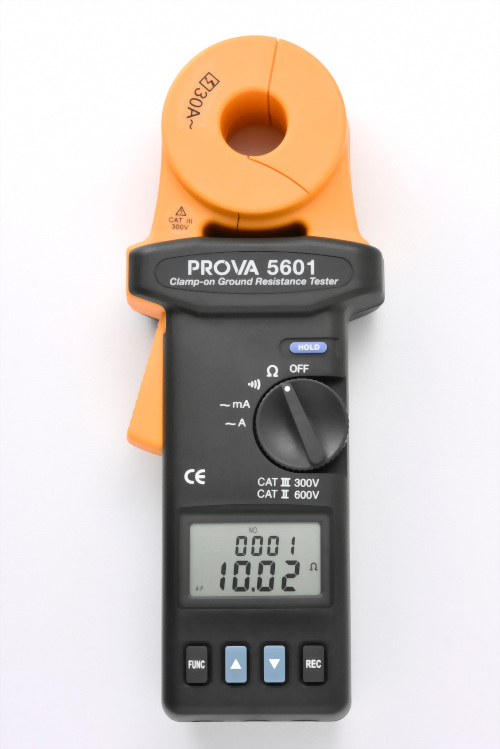

Clamp Ground Resistance Tester PROVA-5601
The PROVA 5601 Clamp Ground Resistance Tester is engineered for accurate resistance measurement with auto-ranging capabilities.
It can measure different ranges of ground resistance and is ideal for precise RMS measurement at 50/60 Hz, featuring storage functionality.
It is a versatile clamp ground resistance tester designed for a range of industrial and environmental applications. It boasts high precision, multifunctionality, and automatic range switching.
If you have any questions,
please feel free to contact us!
| Ground Resistance Measurement Range | 0.025Ω ~ 1500Ω |
|
Jaw Inner Diameter |
Approx. 23mm (0.9”) |
|
Jaw Maximum Opening |
Approx. 27mm (1.06”) |
|
Battery Type |
9V IEC 6 LR61 (Alkaline battery) |
|
Battery Life |
3000 measurements |
|
Display Type |
4 digits, 9999 count, LCD Display |
|
Auto Power Off |
Yes |
|
Overload Indicator |
OL |
|
Current Consumption |
40mA |
|
Sampling Time |
0.5 sec. |
| Operating Temperature |
0°C ~ 50°C(14°F ~ 122°F) |
|
Operating Humidity |
＜85% relative humidity |
|
Working Altitude |
Up to 2000M |
|
Storage Temperature |
-20°C ~ 60°C (-4°F ~ 122°F) |
|
Storage Humidity |
＜75% relative humidity |
|
Dimension |
257 x 100 x 47mm |
|
Weight |
640g |
|
Accessories |
Standard resistance test loop board x 1, |
- Non-contact ground resistance measurement
- No auxiliary ground rods or wire cutting required
- Resistance range: 0.025 ~ 1500Ω
- Current range: 0.3mA ~ 30A
- Jaw diameter: 23mm
- True RMS (TRMS) current measurement
- Programmable upper and lower limit warnings; automatic beep warning when limits are exceeded
- Configurable automatic recording time (1~255 seconds)
- 116 memory slots
- Automatic power-off function
