Model :
PERMAFLOW

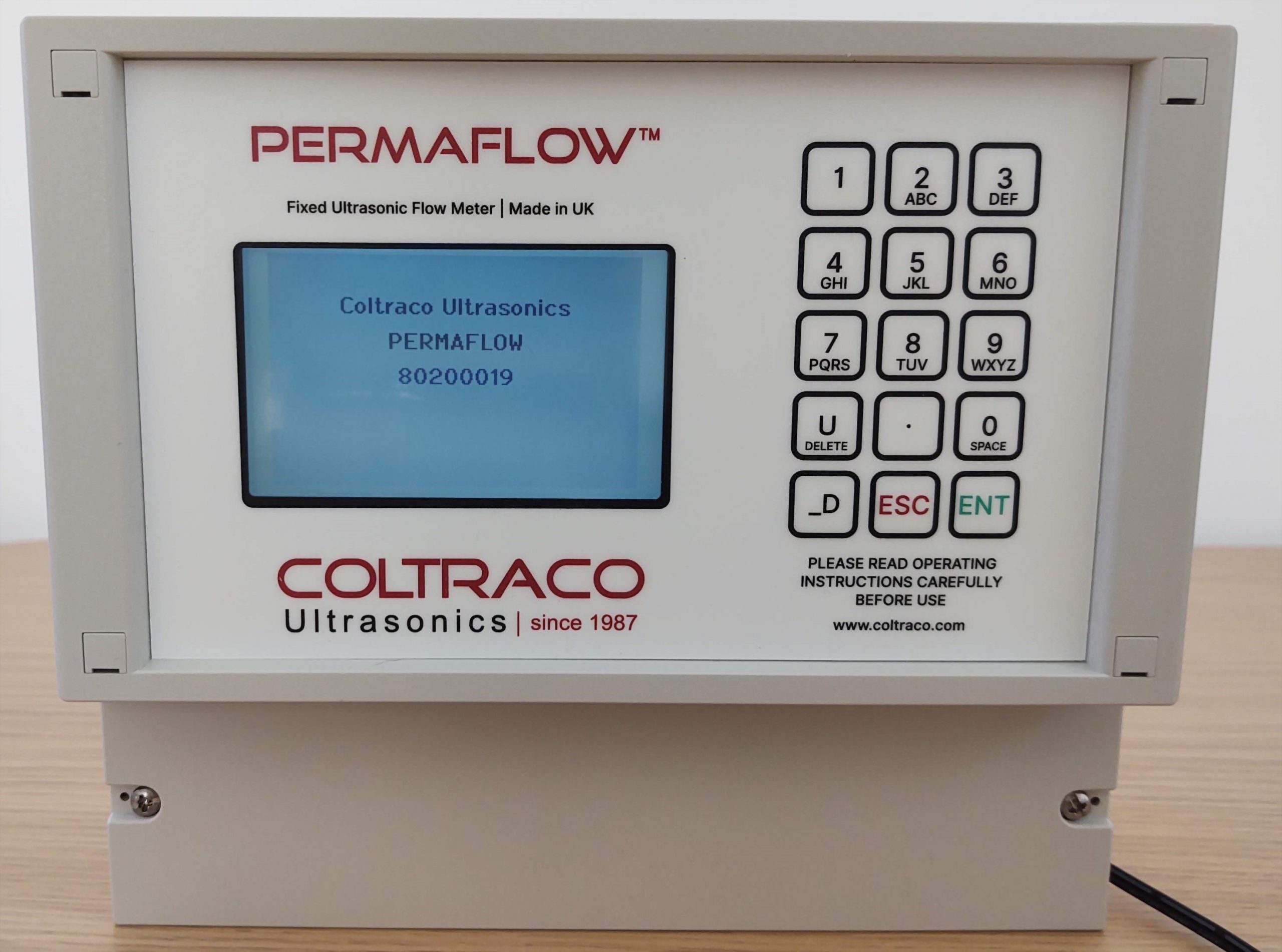

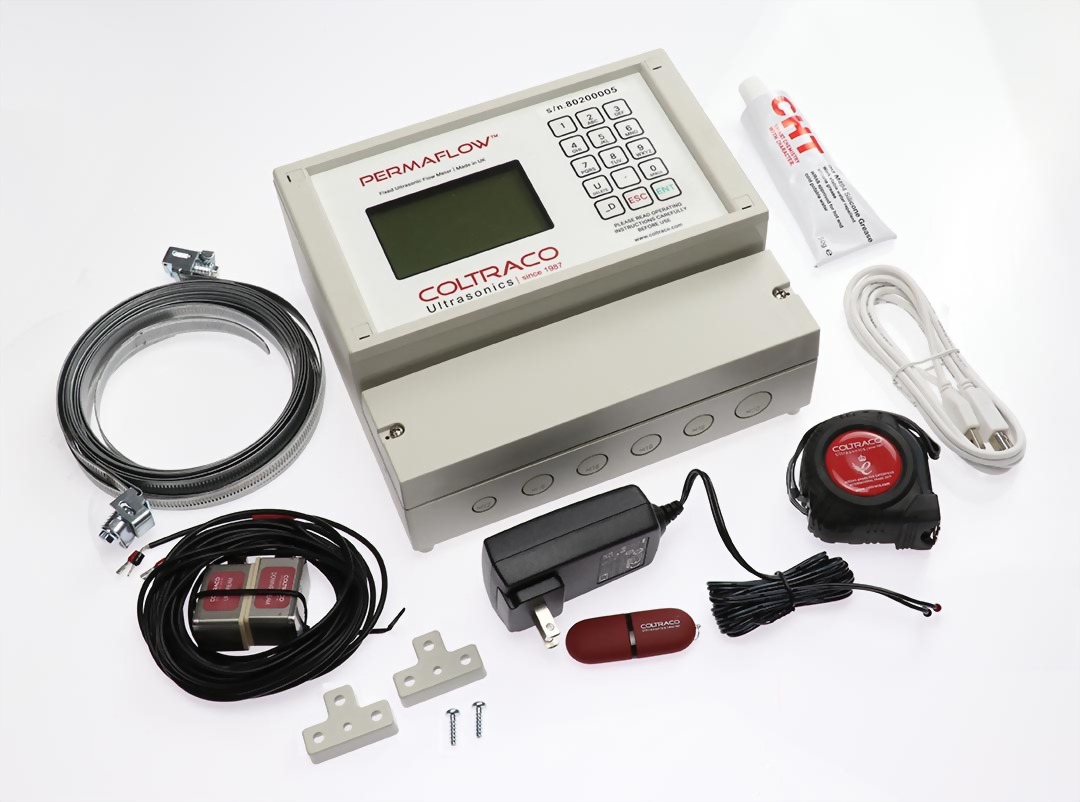

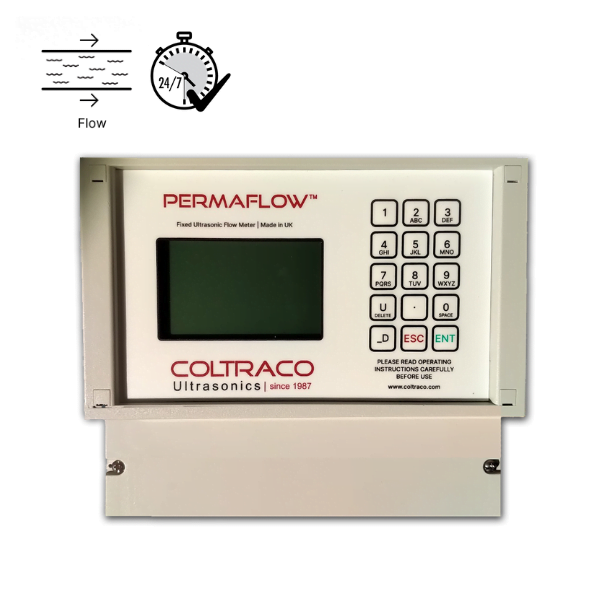

Fixed, Clamp-on, Transit Time Ultrasonic Flow Meter PERMAFLOW
The Permaflow® is a fixed, clamp-on, ultrasonic transit time flow and heat meter that is non-invasive for measuring the flow rates of liquids containing less than 10% of gas/solid contents.
It is mains powered, designed for 24/7 monitoring and is accurate to +/- 0.5% of measured value under ideal conditions.
The system is built with modular I/O modules, with a range of different options available, allowing you to choose only what you need to save you cost and money. It comes with USB and RS232 as standard for serial communications and 16MB internal memory. It is capable of saving measurements internally, to be exported later to a PC, or data stream directly from the system to the PC. To help to achieve reliable measurements, the system comes with built-in oscilloscope for signal diagnostics that assists you in performing a reliable measurement as part of the setting up process.
Suitable for commercial
building heat measurement, fuel monitoring, wastewater, etc.
If you have any questions,
please feel free to contact us!
| Pipe Diameter Range | DN15-DN2500 |
| Liquid Types |
Most clean liquids with gas/solids less than 10% volume (built-in database over 19+ liquids). |
| Accuracy | +/-0.5% of measured value under ideal conditions. |
| Flow Velocity | 0.01m/s ~ 25m/s |
| Resolution |
0.25 mm/s |
| Repeatability | 0.15% of measured value. |
| Turn Down Ratio | 1/100 |
| Measurement Rate | 1 Hz as standard |
| Measurement Units |
Flow Velocity (m/s), Volumetric Flow Rate, Mass Flow Rate, Energy Flow Rate / Heat Quantity, Volume, Mass, Energy – also suitable for heat metering applications |
| Display | Full 240 x 160 pixel graphics with backlight. |
| Power Supply |
2V – 36V DC configurations at 10W, DC PSU supplied as standard (suitable for mains AC power 100V – 240V) |
| Operating Temperature |
Main Unit: -10°C to +65°C |
| Protection Class |
Main Unit: IP 65 enclosure
|

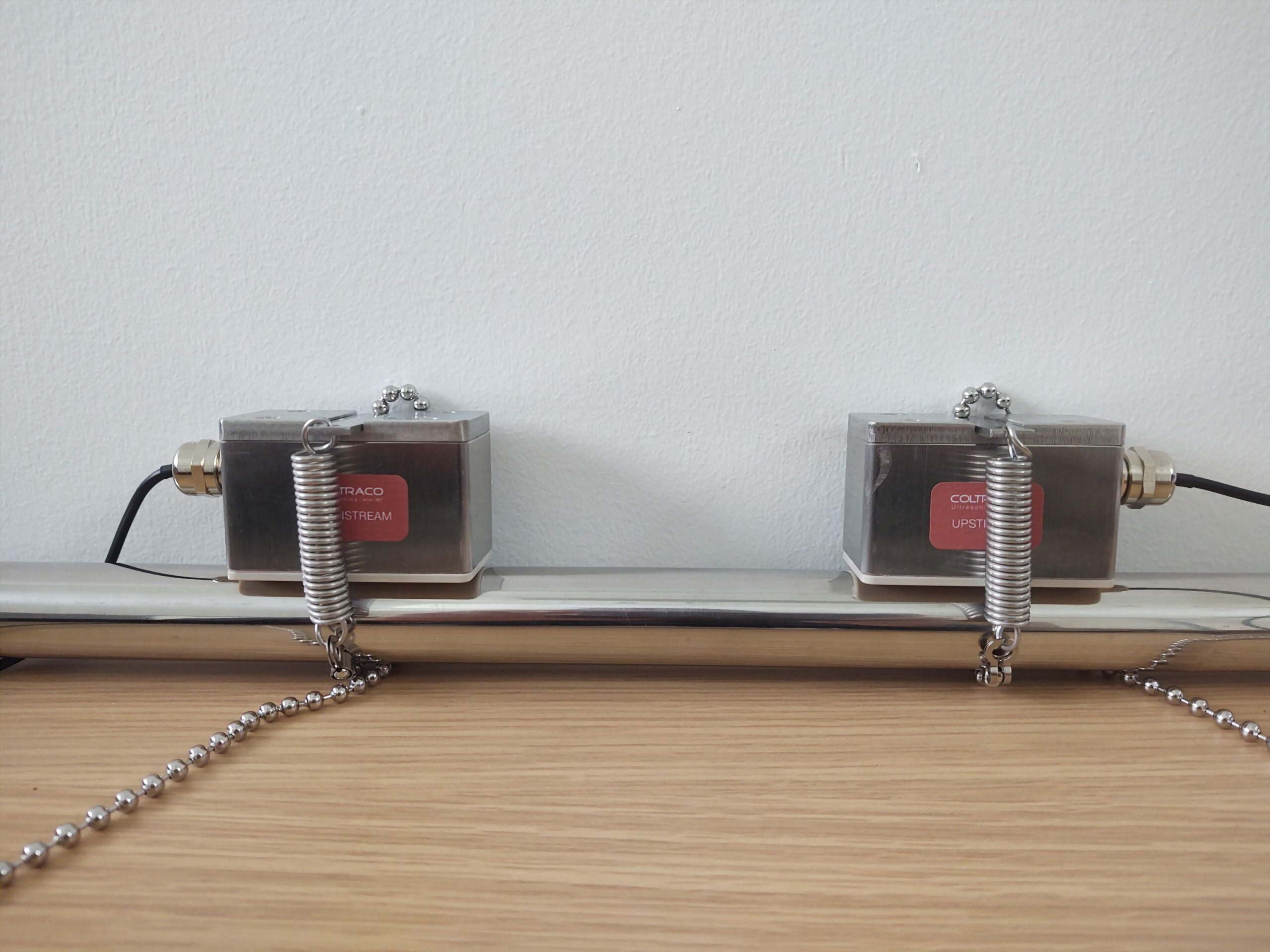

| Sensor Dimensions |
Standard Model No. DM10: 40 x 20 x 25mm |
| Sensor Material |
Housing: Stainless Steel |
| Cable Length | 3m |
| Data Logging | 16 MB datalogger included as standard – all measurement values can be logged. |
| Communication |
Serial Communications RS232 and USB included as standard,
|
| Dimensions | 160 x 82 x 30mm |
| Weight | 300g |
- Clamp-on design eliminates installation costs such as drilling into pipes and avoids downtime for the pipe network.
- Provides 24/7 flow rate monitoring with customizable alert options.
- No contact with the fluid being measured, eliminating the risk of pressure loss throughout the pipe network.
- The fluid cannot damage the flowmeter, contributing to a longer lifespan and lower maintenance costs compared to inline flowmeters that are in contact with the fluid and risk damage from pressurized flow.
- The Permaflow® can be wall-mounted or fixed for a stable and neat installation, ensuring the display and measurements are clearly visible in various room conditions.
