Model :
NP15 LT

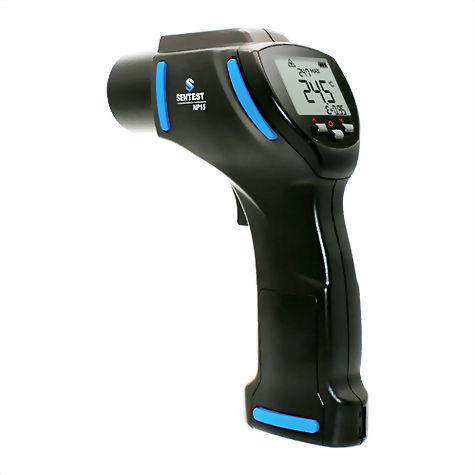

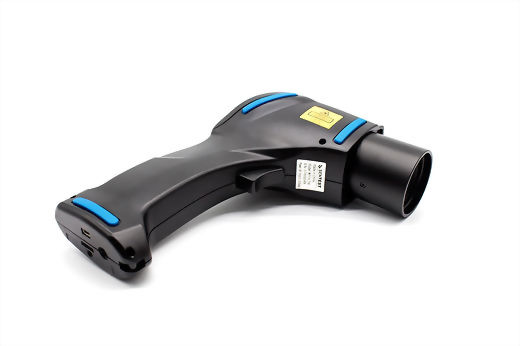

Portable Infrared Thermometer NP15 LT
A non-contact temperature measurement tool that can quickly and accurately read the surface temperature of an object.
This thermometer has a wide measurement range of -30℃ to 900℃ and optical resolution of SF 60:1 / CF 75:1.
If you have any questions,
please feel free to contact us!
|
Temperature Range |
-30ºC ~ 900ºC (-22ºF to 1652ºF) |
|
Spectral Response |
8 ~ 14μm |
|
Optics Resolution (90% energy) |
60 : 1 (SF), 75 : 1 (CF) |
|
Accuracy |
±1% of reading or ±1ºC, whichever is
greater; (≥ 20°C) ±1.5°C (-20 ~ 19.9°C), ±2.5°C (-30 to -20.1°C) |
|
Repeatability |
±0.5% of reading or ±0.5ºC, whichever is greater |
|
Response Time (95% signal) |
300 ms |
|
Emissivity (adjustable) |
0.10 ~ 1.00, in 0.01 increments |
|
Temperature Resolution |
0.1ºC, (1ºC above 1000ºC) |
|
Digital Output |
USB |
|
Input |
Thermocouple Type K |
|
Data Logger |
2,000 points |
|
Laser |
IEC Class2/FDA Class ǁ (<1mW) |
|
Display |
4 digit backlit LCD display |
|
Power Supply |
9V alkaline battery |
|
Battery Life |
10 hours (laser and
backlight on) |
|
Ambient Temperature |
0ºC to 50ºC |
|
Storage Temperature |
–20ºC to 60ºC
Without battery |
|
Relative Humidity |
10 ~ 95% (non-condensing), up to 30ºC |
|
Dimensions |
163.5 x 207 x 70mm |
|
Weight |
470g |
|
Tripod Mounting |
1/4 - 20 UNC |
- Wide Temperature range of -30℃ ~ 900℃
- Optical resolution of SF 60:1 / CF 75:1
- Spot sizes down to 1mm
- 300ms response time
- Dual laser sighting
- Visual and acoustic HIGH and LOW alarm

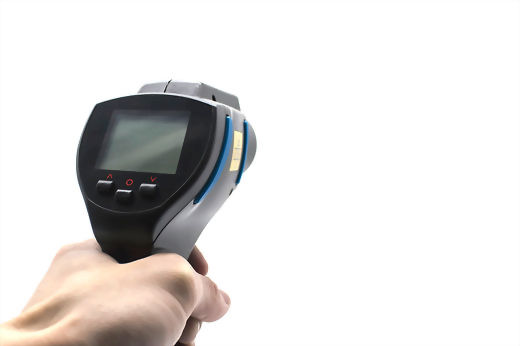

- 4 digit backlit LCD display

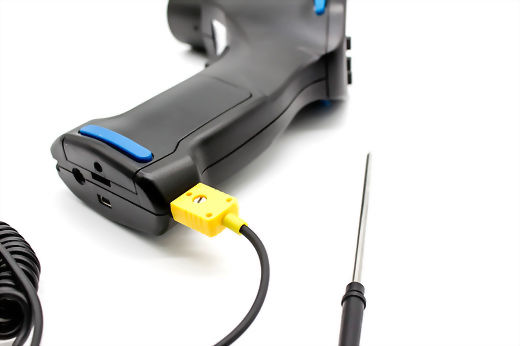

- TCK input
- STonline Software
