Model :
NP15 H1

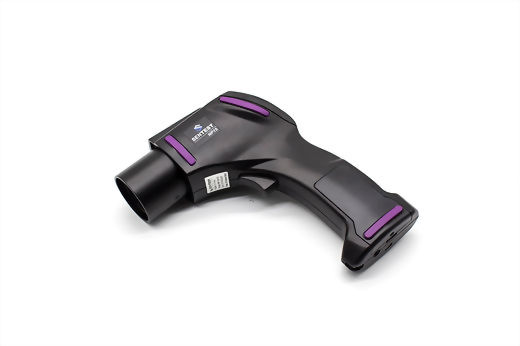

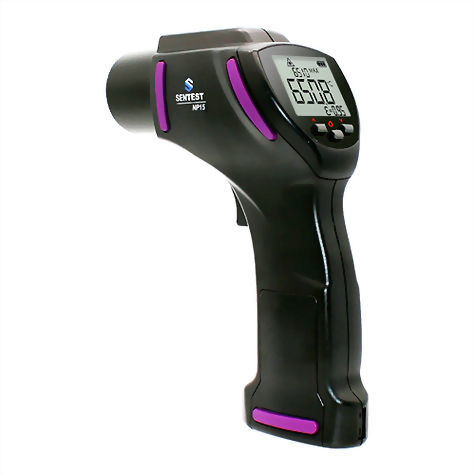

Portable Infrared Thermometer NP15 H1
A non-contact temperature measurement tool that can quickly and accurately read the surface temperature of an object.
This thermometer has a wide measurement range of 600℃ to 1600℃ and optical resolution of 300:1.
If you have any questions,
please feel free to contact us!
|
Temperature Range |
600ºC ~ 1600ºC (1112ºF to 2912ºF) |
|
Spectral Response |
1μm |
|
Optics Resolution (90% energy) |
300 : 1 |
|
Accuracy |
±(0.5% of reading +2ºC)
whichever is greater
|
|
Repeatability |
±(0.3% of reading +1ºC), whichever is greater |
|
Response Time (95% signal) |
5 ms |
|
Emissivity (adjustable) |
0.10 ~ 1.00, in 0.01 increments |
|
Temperature Resolution |
0.1ºC, (1ºC above 1000ºC) |
|
Digital Output |
USB |
|
Input |

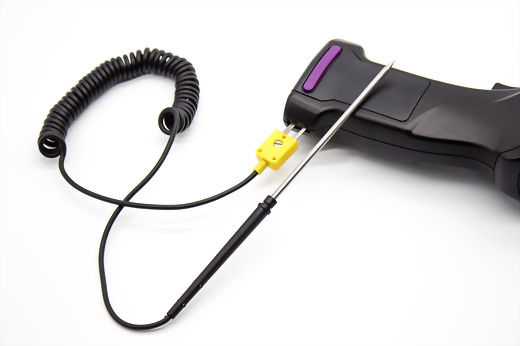

Thermocouple Type K |
|
Data Logger |
2,000 points |
|
Laser |
IEC Class2/FDA Class ǁ (<1mW) |
|
Display |
4 digit backlit LCD display |
|
Power Supply |
9V alkaline battery |
|
Battery Life |
10 hours (laser and
backlight on) |
|
Ambient Temperature |
0ºC to 50ºC |
|
Storage Temperature |
–20ºC to 60ºC
Without battery |
|
Relative Humidity |
10 ~ 95% (non-condensing), up to 30ºC |
|
Dimensions |
163.5 x 207 x 70 mm |
|
Weight |
470g |
|
Tripod Mounting |
1/4 - 20 UNC |
- Wide Temperature range : 600℃ ~ 1600℃
- Optical resolution up to 300:1
- Spot sizes down to 1mm
- 5 ms response time
- Dual laser sighting
- Visual and acoustic HIGH and LOW alarm
- 4 digit backlit LCD display
- TCK input
- STonline Software
