Model :
NP10

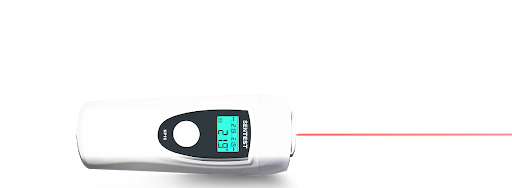

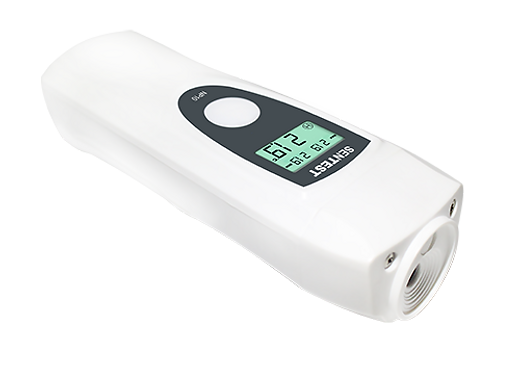

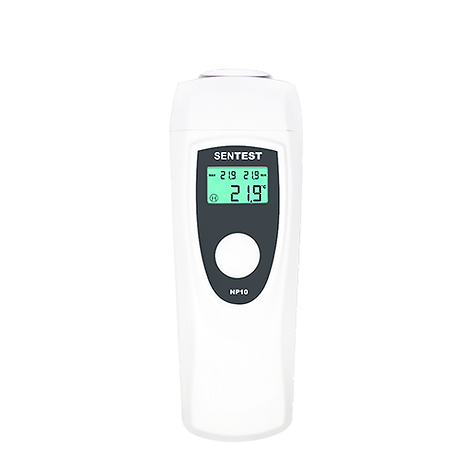

Portable Infrared Thermometer NP10
This thermometer is a convenient, non-contact temperature measurement tool that can quickly and accurately read the surface temperature of an object.

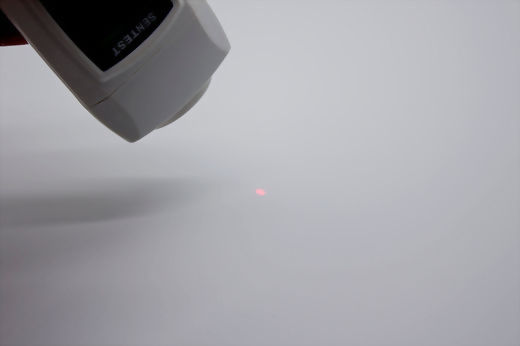

It uses laser aiming detection to determine the temperature of the object, making it particularly suitable for measuring the temperature of high-temperature, hazardous, or hard-to-reach objects.
It consists of components such as an optical system, photoelectric sensor, signal amplifier, signal processing circuit, and LCD display.
These components work together to provide a safe and effective temperature measurement solution.
If you have any questions,
please feel free to contact us!
|
Temperature Range |
-30℃ ~ 600℃ (-22ºF ~ 1112ºF) |
| Spectral Response |
8 ~ 14μm |
| Optics Resolution (90% energy) |
15 : 1 |
| Accuracy |
±1% of reading or ±1℃, whichever is greater |
| Repeatability |
±0.5% of reading or ±0.5℃, whichever is greater |
| Sighting |
Laser, IEC Class2/FDA Class ǁ (<1mW) |
|
Response Time (95% signal) |
300 ms |
| Temperature Resolution |
0.1℃ |
| Emissivity (adjustable) |
0.10 ~ 1.00 (adjustable) |
| Digital Output |
USB |
| Display |
4 digit backlit LCD display |
| Power Supply |
AAA alkaline batteries x 2 |
| Battery Life |
20 hours (laser on) |
| Protection Structure |
IP 67 (waterproof) |
| Ambient Temperature |
0℃ to 50℃ |
| Storage Temperature |
-20℃ ~ 60℃ (without battery) |
| Relative Humidity |
10 ~ 95% (non-condensing), up to 30℃ |
| Dimensions |
143 x 51 x 35 mm |
| Weight |
120g |
- Optical resolution up to 15:1
- USB interface and graphic software
- Laser aiming
- 4 digit backlit LCD display
- Visual and acoustic HIGH and LOW alarm
- STonline Software
