Model :
T4

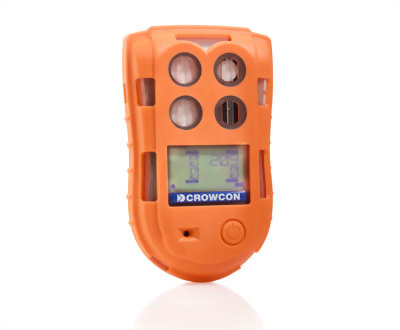

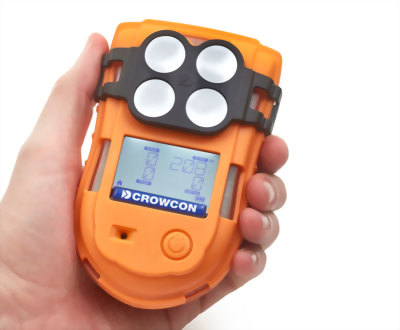

Crowcon T4 Multi Gas Detector
The T4 multi-gas detector offers you a robust and low-cost solution that is easy to use.
An optional clip-on filter cover, which is easy to remove and replace, ensures that it protects its sensors in the dirtiest environments.
It has passed a 4-meter drop test and is certified to IP65 and IP67, allowing it to operate continuously in extreme environments without interference.
If you have any questions,
please feel free to contact us!
| Size | W135 x H80 x D35 mm (5.3 x 3.1 x 1.4in) |
| Weight | 282g (9.9oz) |
| Durability | Drop tested to 4m onto concrete |
| Alarms |
Audible >95dB Bright red/blue visual LEDs Integrated vibrating alert |
| Display | Front-mounted, backlit. Optional 180° flip for easy viewing whilst worn |
| Logging | 130 hours of data logging; Up to 3500 events |
| Battery |
Rechargeable Li-ion 18 hour typical runtime 5.5 hour recharge |
| Operating temperature | -20°C to +55°C (-4°F to +131°F)* |
| Humidity | 10 to 95% RH @ 40°C non-condensing |
| Ingress protection | Independently tested to IP65 and IP67 |
| Approvals |
IECEx: Ex db ia IIC T4 Gb Tamb -20°C to +55°C ATEX: Ex II 2 G Ex db ia IIC T4 Gb Tamb -20°C to +55°C UL: Use in hazardous locations Class 1 Div 1, groups A, B, C and D only as to intrinsic safety INMETRO: Ex db ia IIC T4 Gb Tamb -20°C to +55°C |
| Compliance | EMC Directive 2014/30/EU |
| Interface | USB communications lead |
| Accessories |

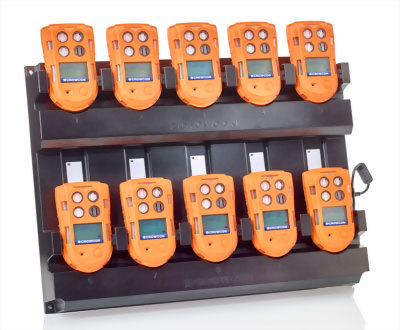

Available separately: Single unit cradle charger, 10 unit cradle charger, vehicle charger Clip on filter plate for sensor protection in dusty environments I-Test automated bump and calibration station |
T4 detects four most common gas hazards:
- Carbon Monoxide
- Hydrogen Sulphide
- Flammable Gases
- Oxygen Depletion
