Model :
M70-D

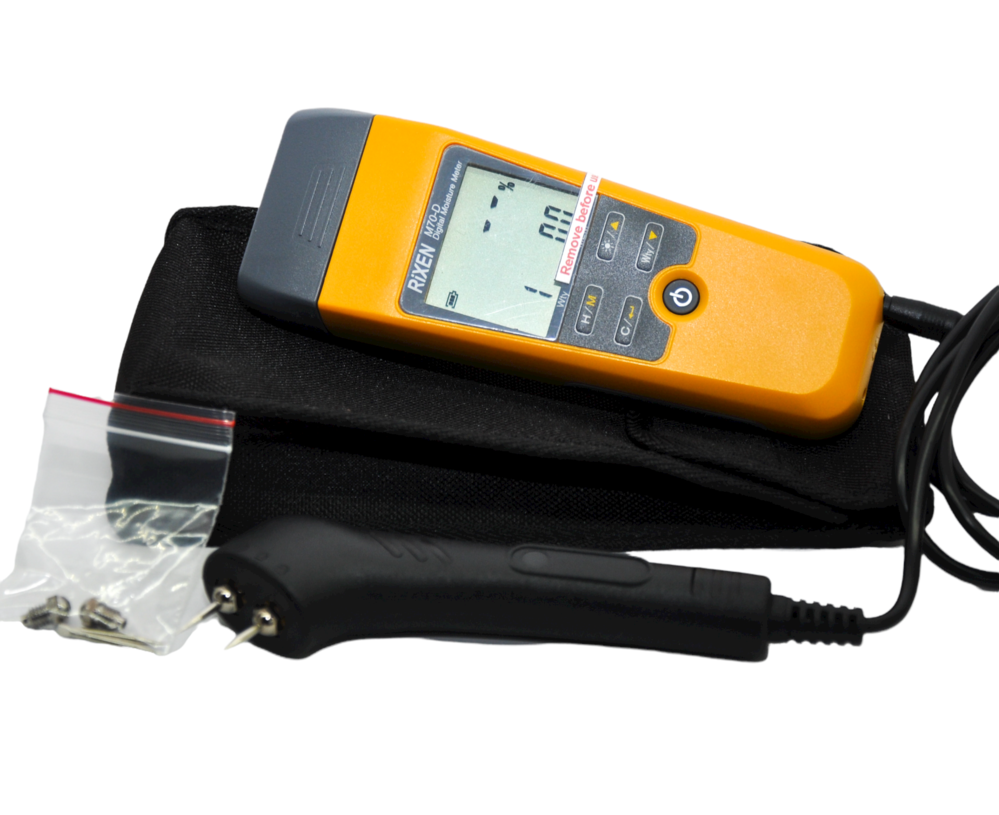

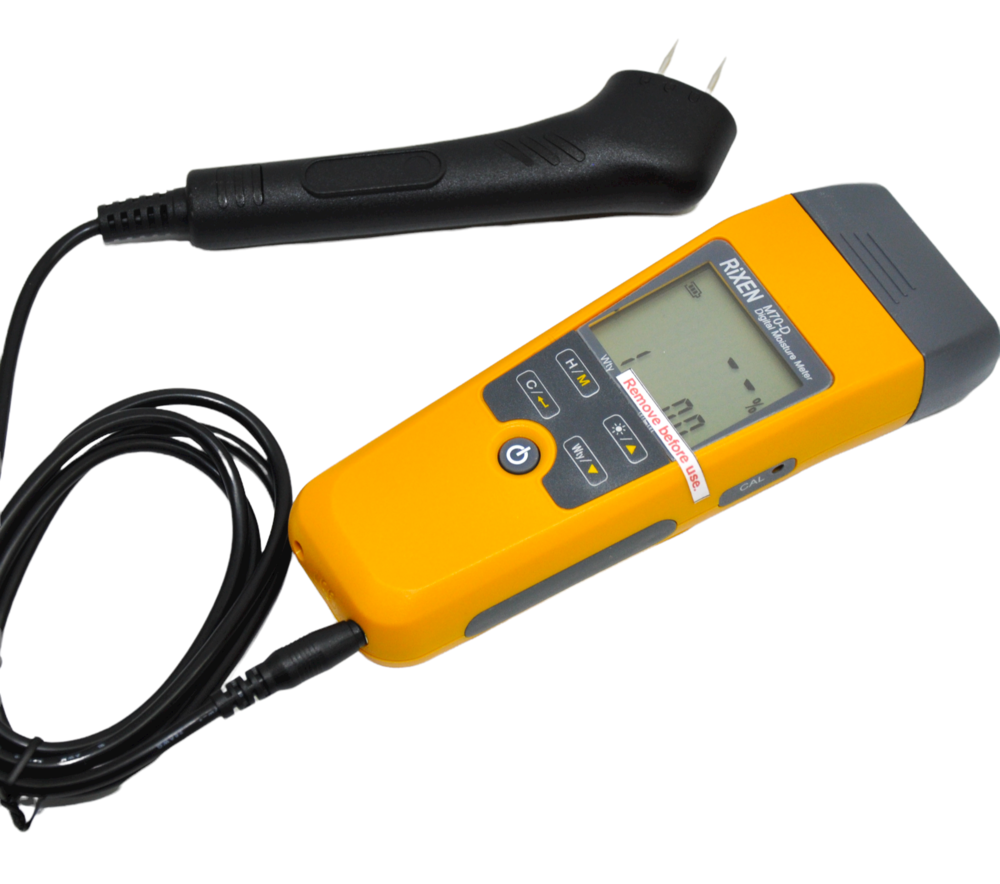

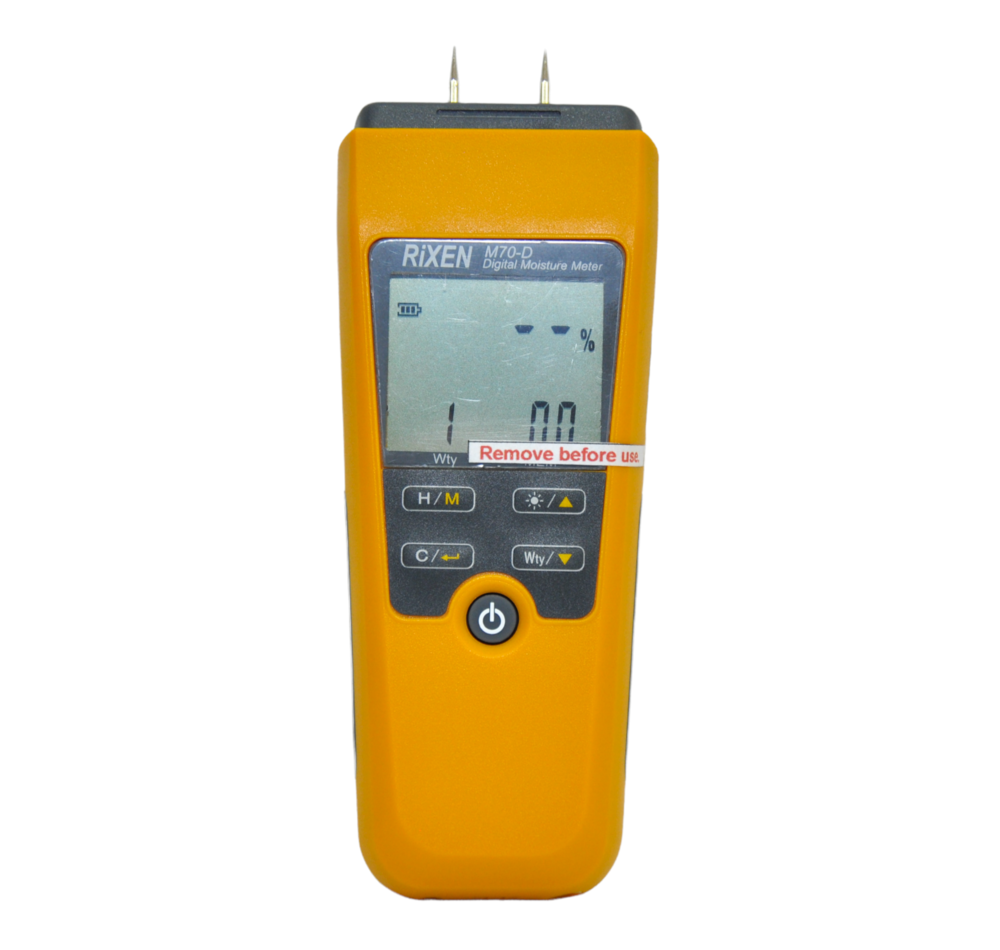

Moisture Meter M70-D
The M70 moisture meter can continuously monitor the moisture content from raw materials to finished products.
It features a special grip design and the latest ergonomic design, making it easy to operate and aesthetically pleasing.
It is reliable, durable, and highly accurate.
It is widely used in various industries and fields, including measuring the moisture content of wood, building materials, bamboo, and paper; as well as food, leather, powders, textiles, ceramics, and medicinal materials.
If you have any questions,
please feel free to contact us!
|
Measuring Range |
5.5 ~ 99.9% H2O %WME |
|
Resolution |
0.1 %（5.5 ~ 99.9%） |
|
Accuracy (at 25°C) |
±1% wood scale |
|
Display |
Multifunction LCD display with backlight |
|
Sampling Rate |
Approx. 0.3 sec. |
|
Signal Output |
Analog DC 0 ~ 1V (10mV/1%), load > 250 Ω |
|
Data Memory |
99 readings, with group number |
|
Functions |
Back-Light, Data Hold, Manual/Automatic Power Off, |
|
Power |
1 x 9V(6F22) Battery, about 250 hours for continuing use. |
|
Ambient of Operating |
-20 ~55℃, < 90%rH, non-condensing |
|
Dimension |
153 x 56 x 32mm |
|
Weight |
155g (including battery) |
- Equipped with anti-slip sides and a multifunctional interface.
- Its digital LCD display has a backlight feature, making it easy to read under various lighting conditions.
- The color change of the indicator light can show the moisture level of the material, and there is an audible alert to provide measurement results.
- It has a wide measurement range, from 5.5% to 99.9%, and provides a 0 to 1VDC output signal.
- This instrument can record 99 sets of data and display “maximum,” “minimum,” and “average” readings.
- It includes a calibration function and eight different wood species options to accommodate different measurement needs.
- Features automatic and manual shutdown functions, with power consumption indicators and low battery warnings.
- Certified by CE and RoHS, meeting international safety standards.
