Model : LX-101

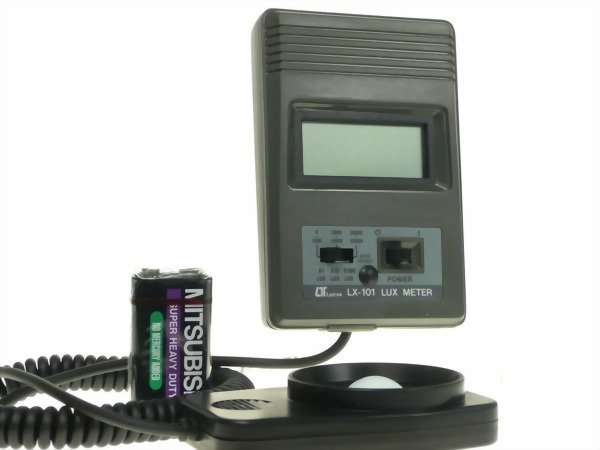

Light Meter LX-101


This light meter is an instrument used to measure light intensity or illuminance.




Its applications are extremely wide-ranging, including electric light sources, scientific research and teaching, metallurgy and construction, industrial inspection, as well as agricultural research and lighting control.

It can help users evaluate and adjust lighting conditions to ensure they meet specific requirements and standards.

Equipped with a CMOS sensor correction factor that meets industry standards.



If you have any questions,

please feel free to contact us!


 Measurement Range

 0 ~ 2,000Lux
 2,000 ~ 20,000Lux
 20,000 ~ 50,000Lux

 Accuracy
 ±5%+2d
 Sampling Time
 0.4 sec.
 Operating Temperature

 0 ~ 50°C (32 ~ 122°F)

 Operating Humidity
 0~80% RH
 Photosensitive Element
 13mm LCD
 Battery

 Single 9V battery (006P / MN1604)

 Dimension  135 x 72 x 33mm
 Sensor Dimensions
 82 x 55 x 7mm
 Weight
 160g
  • The spectral response of the photosensor complies with C.I.E standards.
  • Calibrated with a standard lamp at a color temperature of 2856° K.
  • Photodiode with filter lens.
  • Cosine angle correction meets standards.
  • Independent light sensor allows users to measure at the optimal position.
  • Accurate and easy-to-read measurements with a wide range.
  • High precision in measurements.
  • Built-in low battery indicator.
  • LSI circuit provides high reliability and durability.
  • LCD screen with low power consumption.
  • Compact size, lightweight, and easy to operate.
  • LCD screen can be clearly read even under high ambient light.
