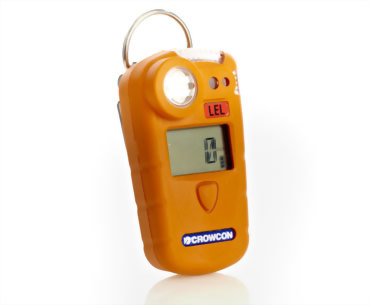

Gas Detector - Gasman

Gasman is a fully functional personal single gas monitor designed for the toughest industrial environments.

It features simple single-button operation, a large easy-to-read gas concentration display, and audible, visual, and vibrating alarms.

This compact and lightweight device is perfect for industrial gas detection across various sectors, including oil and gas, chemical plants (handling exotic gases), steel works (featuring a special CO sensor), hospitality (CO2 monitoring), renewable energy (hydrogen detection), and waste and water treatment facilities.

Weighing only 130g, it boasts exceptional durability with high impact resistance and protection against dust and water ingress. It features loud 95 dB alarms, a striking red/blue visual warning, single-button operation, and a backlit LCD display for clear gas level readings, alarm conditions, and battery life.

Additionally, Gasman is available in a safe area CO2 version, capable of measuring carbon dioxide levels from 0-5%.

If you have any questions,

please feel free to contact us!

Size	90 x 48 x 24 mm (3.5 x 1.9 x 0.95 ins)
Weight	Flammable: 138g (4.9oz)  Toxic: 85g (3oz)  Oxygen: 129g (4.6oz)  Carbon monoxide: 139g (4.9oz)
Typical response times (T90)	Flammable: 20s  Flammable (MPS): 17s  Toxic gas: 20s  Oxygen: 10s  Oxygen (Long-Life): 10s

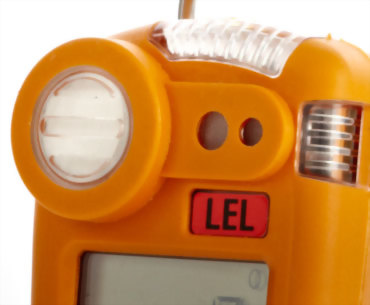

Alarms	Audible: 95dB; Multiple alarm options let you select distinctive tones for different alarm levels  Visible: Dual colours red/ blue flashing LEDs in a gas hazard  Internal vibrating alarm
Display	Custom LCD with backlight, with display of gas concentration. Graphic symbols for battery (with proportional indication of remaining operation time), and display mode. Start up indication when calibration is due within 30 days, calibration overdue or service required.  Normal display: Real time gas concentration levels  Display recall: Peak readings and TWA
Data logging	Full timed datalogging with adjustable sample rate, set to 1 min. data rate as default.  900 hours storage at 1 min. interval (54,000 logs), >4800 events
Battery	Rechargeable lithium battery for all gas types  Non-rechargeable lithium battery for toxics and oxygen (excluding CO2)
Operating time	Rechargeable with MPS: >3days  Rechargeable: 12 hours minimum for flammable unit  Non-rechargeable: Up to 2 years
Sampling	Optional manual aspirator
Operating temperature	-20°C to +65°C (-4°F to + 149°F)
Humidity	5 – 95% RH  0 to 99% RH (O2 LL MPS)
Ingress protection	IP65
Approvals	Europe: Toxic or O2: ATEX II 1G Ex ia IIC T4 Ga (-20°C ≤ Ta ≤ +65°C) BASEEFA04ATEX0384  Flammable: ATEX II 2G Ex ia db IIC T4 Gb (-20°C ≤ Ta ≤ +65°C) BASEEFA04ATEX0383Flammable (MPS): ATEX II 1G Ex ia IIC T4  Ga (-20°C ≥Ta ≥ +65°C) BASEEFA04ATEX0383  International: Toxic or O2: IECEx Ex ia IIC T4 Ga (-20°C ≤ Ta ≤ +65°C) BAS05.0039  Flammable: IECEx Ex db ia IIC T4 Gb (-20°C ≤ Ta ≤ +65°C) BAS05.0038  North America: CSA Class 1 Groups A,B,C,D Division 1
Standards	Europe: EN60079-0, EN60079-11, EN60079-1, ATEX 2014/34/EU  North America: CSA22.2, 152EN50270, EN50271, EN61779
PC Interface	RS232 connection from interface module in charger  RS232/USB converter available

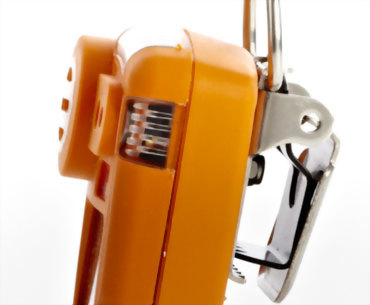

Accessories	Gasman is supplied with an integral alligator clip.  Optional accessories:  Gas test kit, Gasman external filter, leather carry case, single way charger, charger interface software and communication kit (excluding PSU), 5 way multi-charger

Required ranges and alarms vary by country and application and these can be configured as required. Each gas channel can have two instantaneous alarm levels set. Toxic units also have Time Weighted Average (TWA) alarms.

Gasman is also available in a safe area CO2 version offering 0-5% carbon dioxide measurement.
