Model :
Framed Display

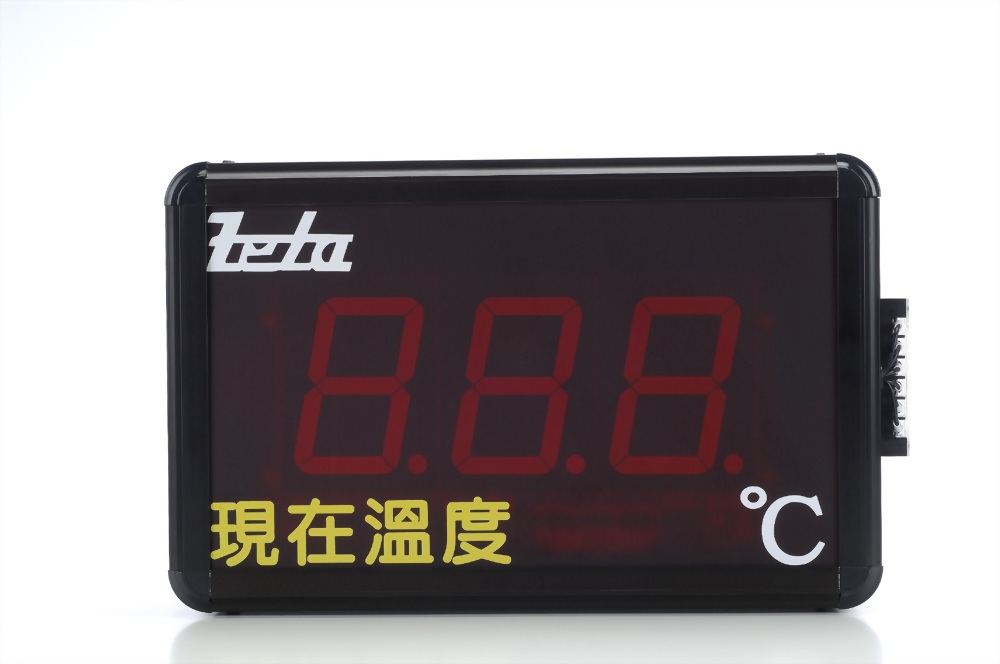

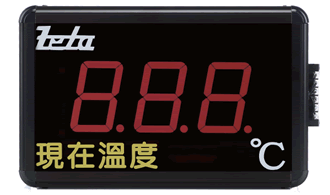

Single Row Large Digit LED Display - Aluminum Frame
This display is used to show temperature.
Using an internal temperature sensor to calculate temperature.
It can also be equipped with an output control relay signal and a buzzer alarm.
If you have any questions,
please feel free to contact us!
| Specification | |||||||
| Type | Frame Material | 2.3"(Approx. 6cm character height) | Weight | 4"(Approx. 10cm character height) | Weight | 7"(Approx. 18cm character height) | Weight |
| 3-digits |
Aluminum |
30 x 21 x 10cm | 2.5kg | 41 x 26 x 10cm | 3.7kg | 65 x 38 x 10cm | 8.2kg |
- Input Signals: T/C, RTD, Current, Voltage, Count
- Analog Output: Retransmission 4~20mA Recorder (Non-isolated)
- Display Accuracy: ±0.3 F.S.
- Communication Interface: RS-485
