Model :
EG-20

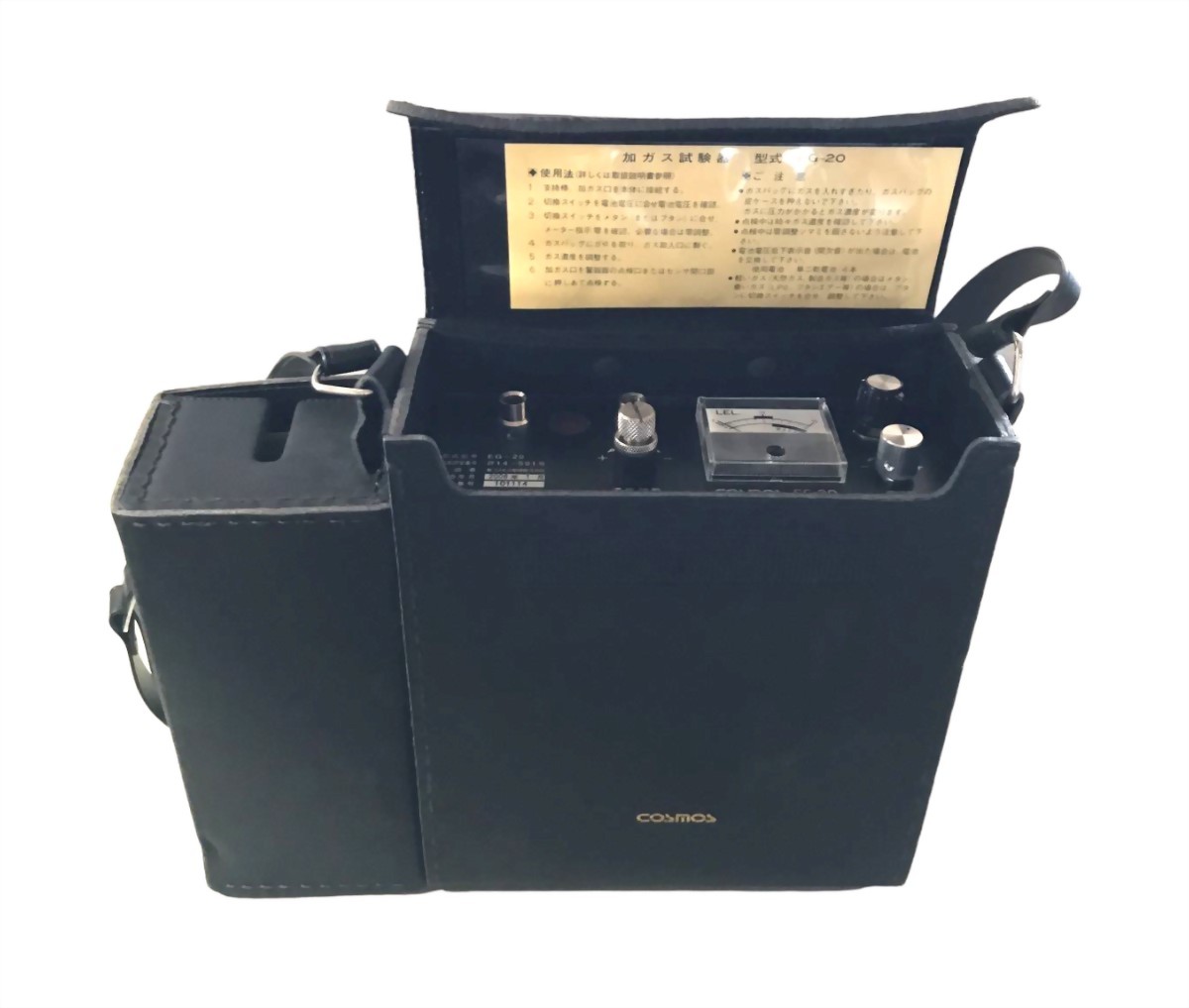

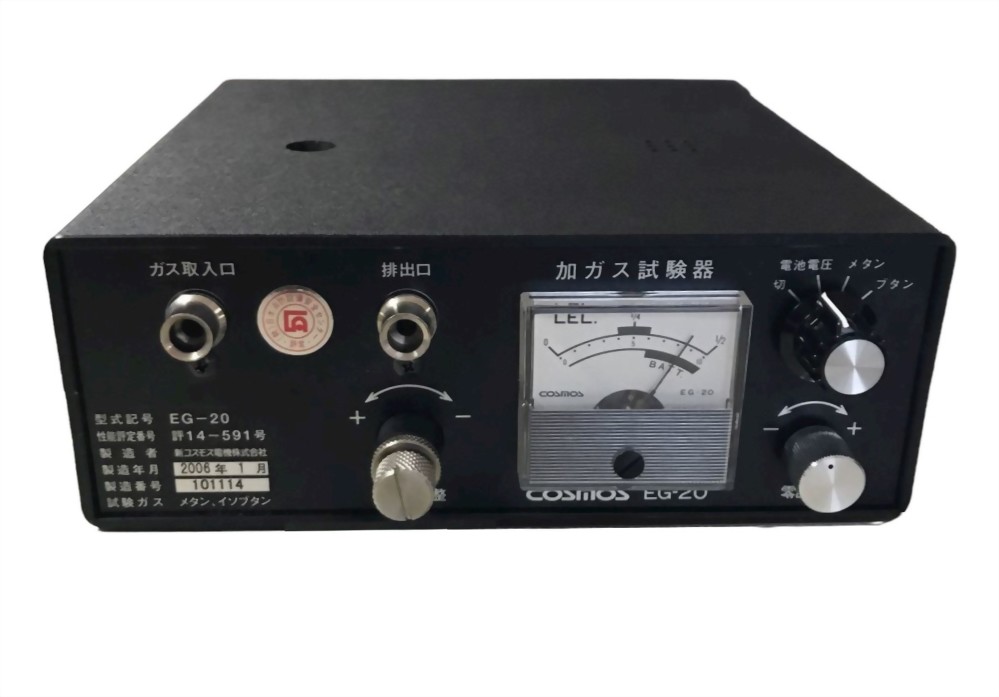

Gas Tester EG-20
Sensor for detecting gas leaks.
If you have any questions,
please feel free to contact us!
| Gases | Methane, Butane (can also be used for gas supply) |
| Gas Concentration |
1/4 LEL ±20% |
|
Gas Flow Rate |
Approximately 300cc/min |
| Injection Time |
Within 20 seconds after adjusting gas concentration |
| Gas Usage | Sampled using a gas bag |
| Power Supply | 4 AA batteries |
|
Gas Concentration Display |
Shown on the meter using a catalytic combustion gas sensor (F.S.1/2 LEL) |
| Alarm Circuit |
1. Intermittent alarm sound when battery voltage is low 2. Continuous alarm sound when gas concentration rises |
| Continuous Usage Time |
More than 1 hour (with 300cc gas) Battery Life: More than 6 hours |
|
Gas Concentration Calibration |
Standard gas cylinder |
|
Operating Temperature Range |
0℃ ～ 40℃ |
|
Dimensions |
Main body: 66 × 180 × 185 mm Support rod: Φ22 (Φ15) × 1003 mm Extension support rod: Φ15 × 1000 mm Rubber tube: Φ7 × 1000 mm Gas inlet: 48 × 48 × 84 mm |
|
Weight |
Main body: Approximately 1.7kg Support rod: Approximately 350g Extension support rod: Approximately 200g Rubber tube: Approximately 80g Gas inlet: Approximately 90g |
- Lightweight and easy to carry
- Gas concentration indicator, easy to operate
- Equipped with alarm function
- Can be used continuously 60 times / One full gas bag can be used for more than one hour
- Suitable for natural gas and LPG, applicable to all types of gas leak detectors
