Model : EBI IF 400

Base Station EBI IF 400


A single receiver can register up to 50 EBI 25 data loggers simultaneously.

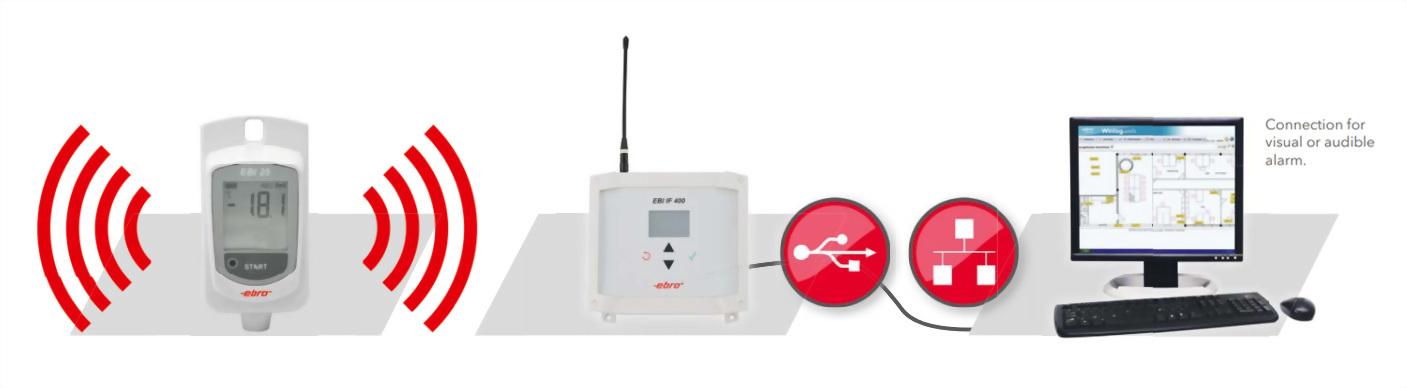

Multiple receivers can be used in an EBI 25 wireless data logger system to connect more EBI 25 data loggers or to provide better coverage, such as in larger buildings.


You need to use this receiver with Winlog web software.





If you have any questions,

please feel free to contact us!

 Power Supply

 5 V ~ 12 VDC

 USB Port

 Type B 100 mA USB 1.1

 Operating & Storage Temperature
 -25 ° C ~ +50 ° C

 Protection Class

 IP 20

 Housing Material

 ABS

 Dimension

 150 x 180 x 45mm

 Weight

 Approx. 358g

  • Collects and stores data from all connected EBI 25 data loggers.
  • Each interface can connect up to 50 data loggers.
  • Each data logger can store up to 576 measurements.
  • Direct connection of any number of interfaces to a PC or network.
  • Audible alarm (optional alarm box available)
