Model :
DM-3000

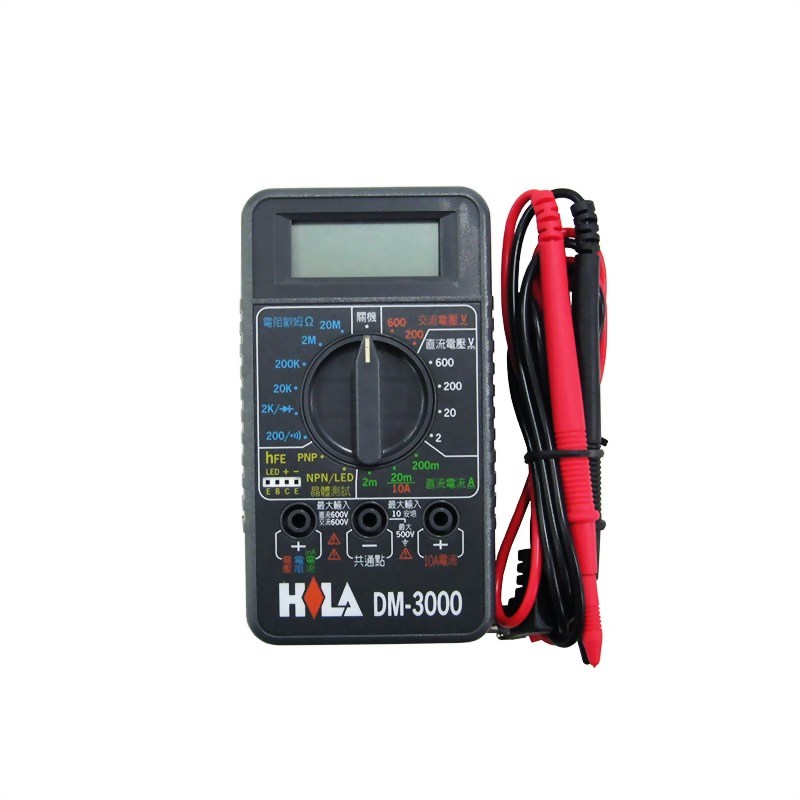

Digital Electricity Meter DM-3000
The DM-3000 is a multifunctional measuring tool.
It is used for measuring voltage, current, resistance, LEDs, diodes, transistors, and continuity buzzer testing.
If you have any questions,
please feel free to contact us!
|
Function |
Range |
Accuracy |
|
DC Voltage (DCV) |
2V/20V/200V/600V |
±(0.5% + 1dgts) |
|
AC Voltage (ACV) |
200V/600V |
±(2.0% + 3dgts) |
|
DC Current (DCA) |
2mA/20mA/200mA/10A |
±(1.5% + 1dgts) |
|
Resistance (Ω) |
200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ |
±(1.5% + 2dgts) |
|
Diode |
Test current ≒ 1mA Open circuit voltage ≈ 2.8V |
|
|
Continuity Buzzer |
< 30Ω ±5Ω Sound |
|
| Dimension | 126 x 70 x 26 mm |
| Weight | Approx. 150g |
| Including | Manual, Probe |
- 3,1/2-digit LCD display, maximum reading 1999
- Shockproof and drop-resistant, fully protected
- Small size and easy to carry
- Low battery warning
- Made in Taiwan, stable quality
