Model :
CM-6156

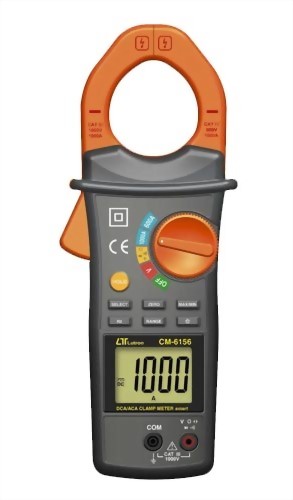

AC and DC Clamp Meter CM-6156
General Industrial Clamp Meter for Current and Voltage.
Commonly used in the fields of electronics, electrical engineering, and communications.
It can measure the magnitude and direction of both alternating current (AC) and direct current (DC).
If you have any questions,
please feel free to contact us!
| AC/DC Current | 0.1A～1000A±2% |
| AC/DC Voltage | 0.001V～1000V±1% |
| Capacitance | 0.001nF～600μF±3% |
| Resistance | 0.1Ω～60MΩ±1.5% |
| Frequency | 40Hz～1KHz±0.5% |
| Jaw Opening Diameter | 33mm |
|
Sampling Time |
0.5-1 sec. |
|
Dimension |
241 x 98 x 46mm |
| Weight | Approx. 373g (excluding batteries) |
- Records Maximum, Minimum, and Hold Readings
- Safety Standards: CAT III 1000V, CAT IV 600V
- Auto Power Off Function
- Diode Test/Continuity Test
