Model :
AVM-01

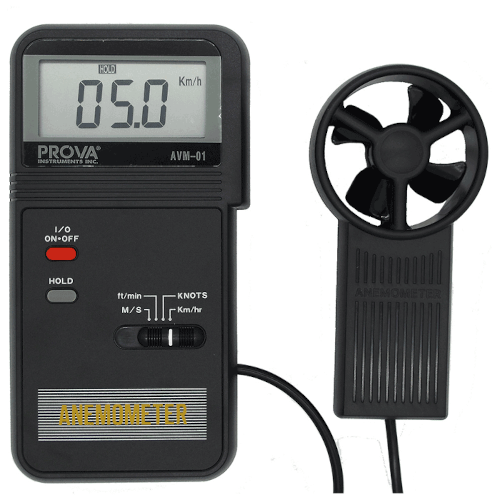

PROVA AVM-01
This anemometer provides sensitive and accurate measurement results, and its low power consumption design enhances overall ease of use.
It supports multiple wind speed units, including m/s, ft/min, knots, and km/hr.
It features a large 17mm 3 ½ digit LCD display with data hold function, making it convenient to record and reference measurements.
The PROVA AVM-01 is an anemometer suitable for various applications, whether for industrial use or everyday purposes.
Its design takes into account user convenience and efficiency, making it suitable for a wide range of measurement needs.
If you have any questions,
please feel free to contact us!
Range of Wind Velocity：
| Units | Range | Resolution | Threshold | Accuracy |
| m/s | 0.0 - 45.0 | 0.1 | 0.5 | ±3% ± 0.3 |
| ft/min | 0 - 8800 | 10 | 60 | ±3% ± 40 |
| knots | 0.0 - 88.0 | 0.1 | 0.6 | ±3% ± 0.4 |
| Km/hr | 0.0 - 140.0 | 0.1 | 1.0 | ±3% ± 0.8 |
| mph (optional) | 0.0 - 100.0 | 0.1 | 0.7 |
±3% ± 0.4 |
Unit Conversion Table：
| m/s | ft/min | knots | Km/hr | mph | |
| 1 m/s | 1 | 196.87 | 1.944 | 3.60 | 2.24 |
| 1 ft/min | 0.00508 | 1 | 0.00987 | 0.01829 | 0.01138 |
| 1 knot | 0.5144 | 101.27 | 1 | 1.8519 | 1.1523 |
| 1 Km/hr | 0.2778 | 54.69 | 0.54 | 1 | 0.6222 |
| 1 mph | 0.4464 | 87.89 | 0.8679 | 1.6071 |
1 |
General Specification：
| Bearing | Sapphire jewel bearing |
| Mounting Nut | 1/4" x 20 |
| Operating Temperature |
Meter: 0°C ~ 50°C Vane: 0°C ~ 60°C |
| Operating Humidity | Less than 80% RH |
| Operating Pressure | 500 mB ~ 2 Bar |
| Storage Temperature |
-40°C ~ 60°C |
| Power Consumption | Approx. 6mA |
| Battery Type | 9V |
| Battery Life | 50 hours (for 300mA-hrs battery) |
|
Averaging Period for |
m/s 0.6 sec. (approx.) ft/min 1.2 sec. (approx.) knots 1.2 sec. (approx.) km/hr 2.2 sec. (approx.) mph (optional) 1.4 sec. (approx.) |
| Dimension: Meter |
88 x 168 x 26.2mm |
| Dimension: Vane |
66 x 132 x 29.2mm |
| Weight | 350g (battery included) |
| Accessories |

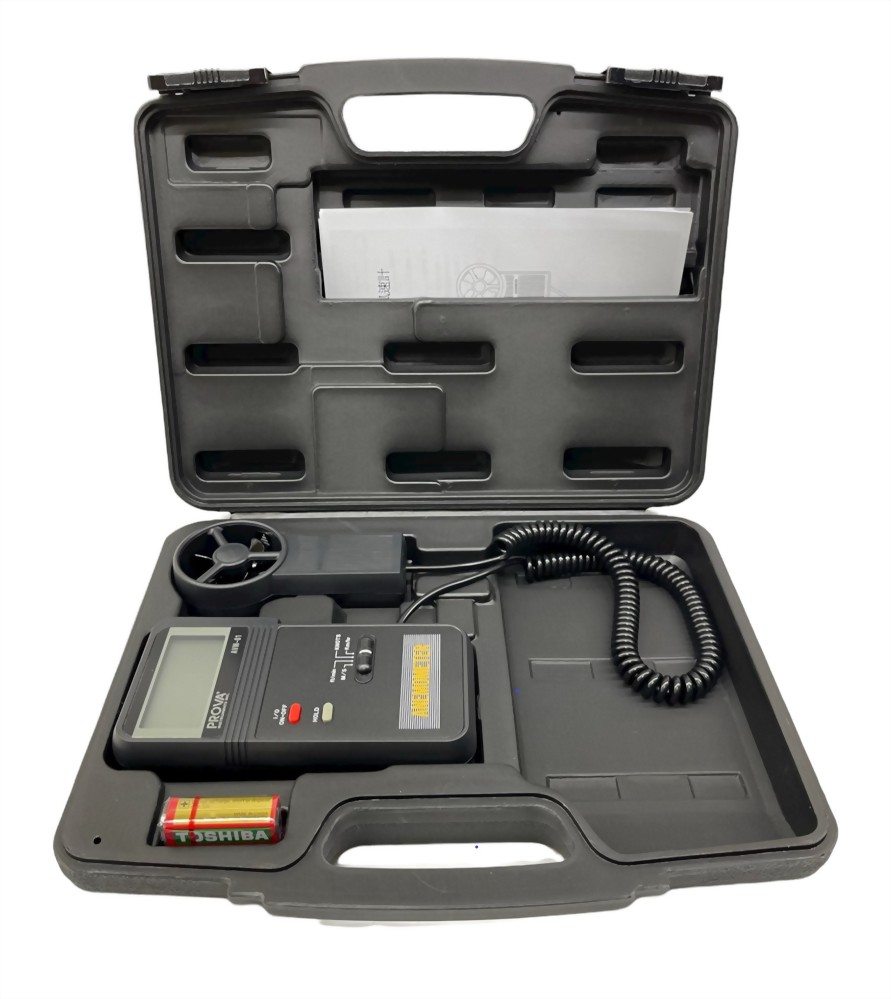

Carrying case x 1 User's manual x 1 9V Battery x 1 |
- Sensitive and Accurate
- Ergonomic design
- Large 17mm 3 1/2 digits LCD
- Read while measuring
- Data hold function
- Low power consumption with low battery indicator
